20241126 - Metal Forming Tools

So,these are some tools I'm using.
Theonly one native is OpenRadioss.
WeldForm CPU and GPU are being dev by me @INTI.
GPU version is almost ready, needs to test coupled mech-thermal things and to test (already coded) more than one contact surface (could be used the same as continous).
Solids4foam requires remeshing capabilities .
ReDynELA isbeing modified with remeshing via mmg lib.
The calc time upper right is only a guess!! It really depends on several factors.

20241121 - GUI Radios FEM Exporter via Python

I began a Python script for export FEM model to OpenRadioss. This allowed me to improve a lot of things concerning to FEM Model methods and its wrapping.
So, mesh is ready. Now it comes all the rest: Material, BCs, Properties, Nodegroups, Sets, interfaces!

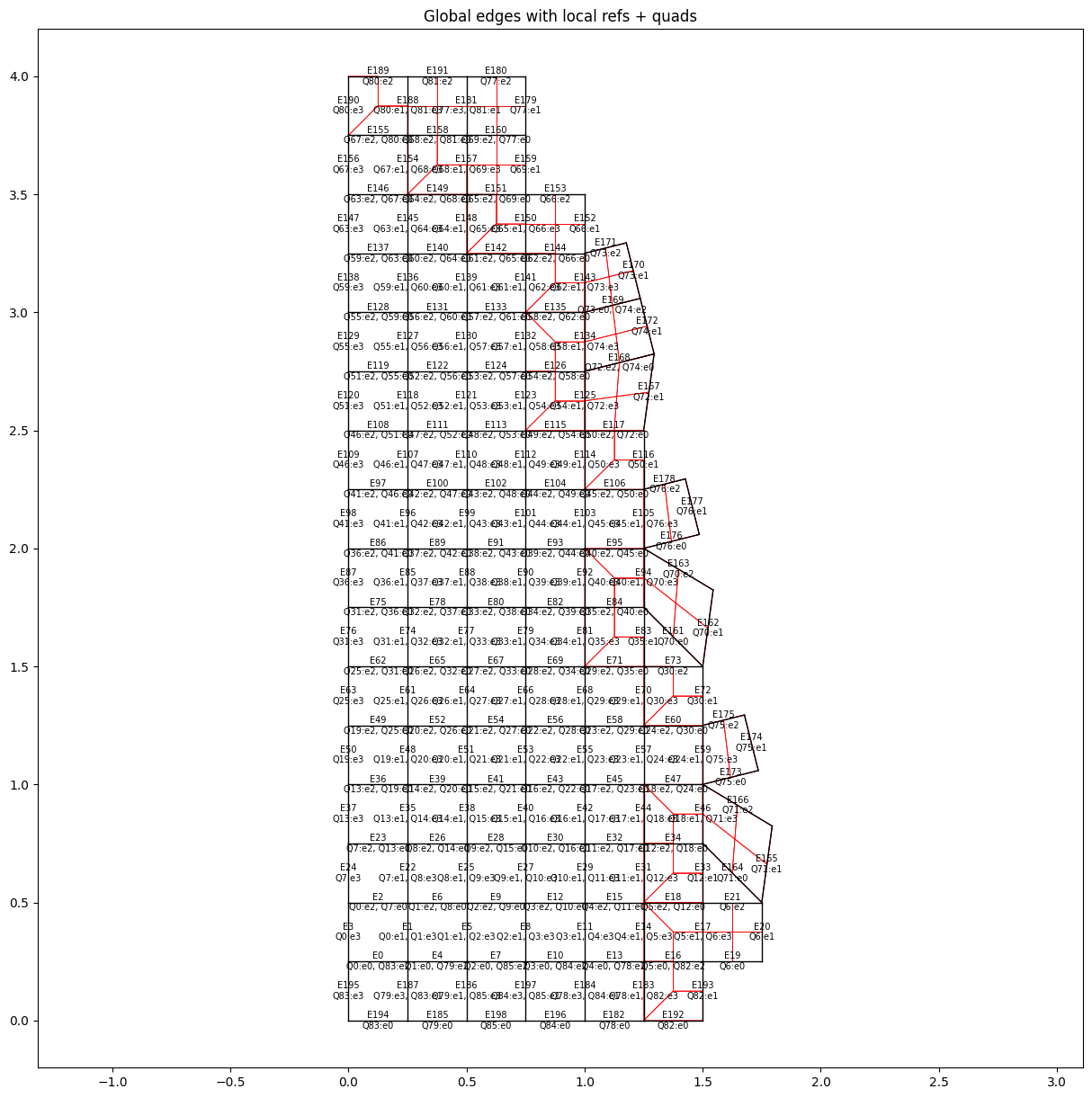

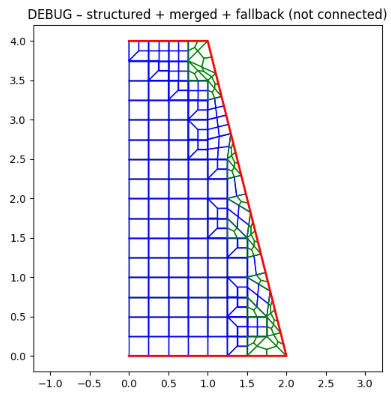

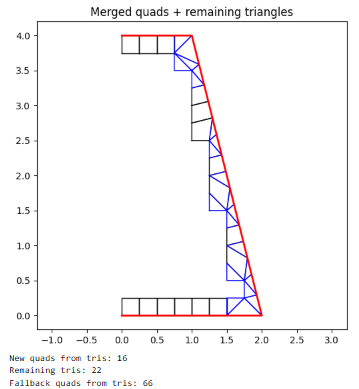

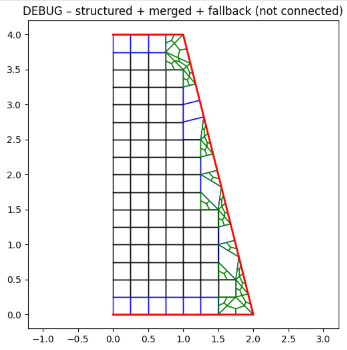

20241119 - FEM Remeshing almost done!! !!!!

Mapping from old to new mesh is done! All is performed via source (old) mesh shape functions.
So the procerure is:
- Perform new (target) mesh (mmg library)
- For every new target node
- Check if is inside element (if all internal coordinates are positive)
- Field Mapping
Youtube Video here

20241114 - GUI working on Linux & MSWIN !!!!

Excellent news!!! Finally, after a "LITTLE" lot of struggling, WeldFormGUI is working on both systems.

All were running ok in Ubuntu, but to make it work in Windows, I had to add external symbols, and TO CHANGE SINGLETON GET INSTANCE IMPLEMENTATION TO C++ file INTSTEAD OF INLINE. (Some may need this info).So, now is slso possible to generate quad elements from nodes with python.
I think is also needed:
- Output on console
- Console editor (check godot scripting console)
- Colors
- Radioss exporter both on python and C++

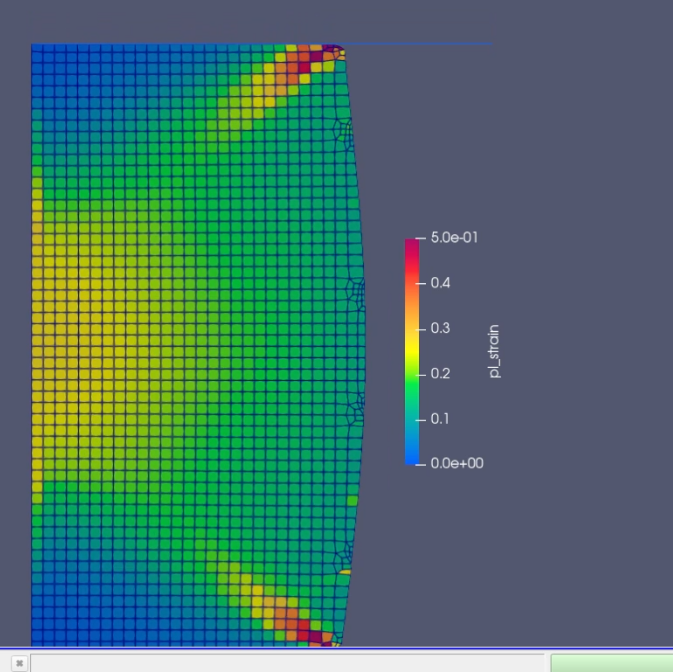

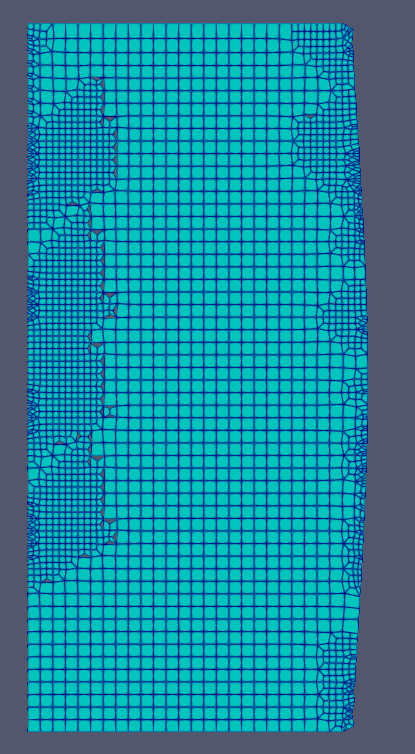

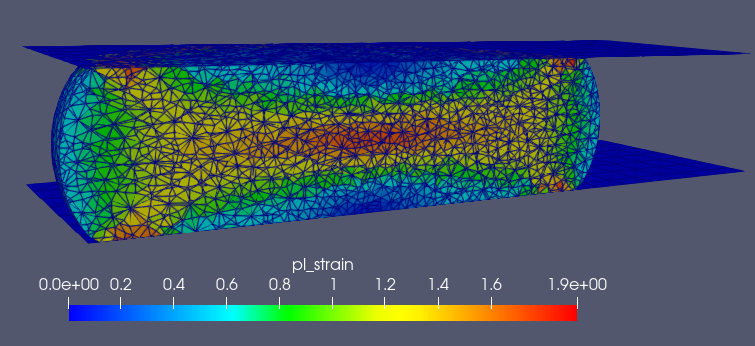

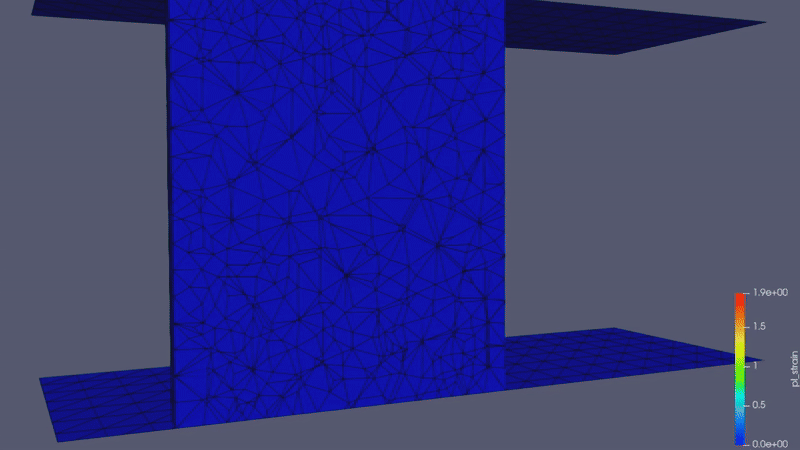

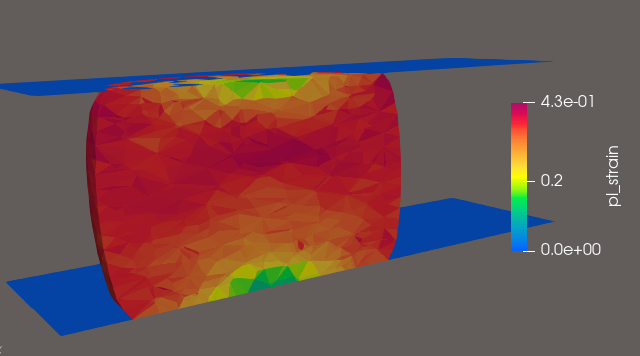

20241111 - Remeshing Solver !!!!

First steps with Adaptive Mesh Refinement (AMR). After struggling a lot with Kratos contact structural mechanics module, and noticing It's actually broken, I decided to adapt myself an existing thermally coupled solver with mmg library, used by kratos, and add to it adaptive remeshing.

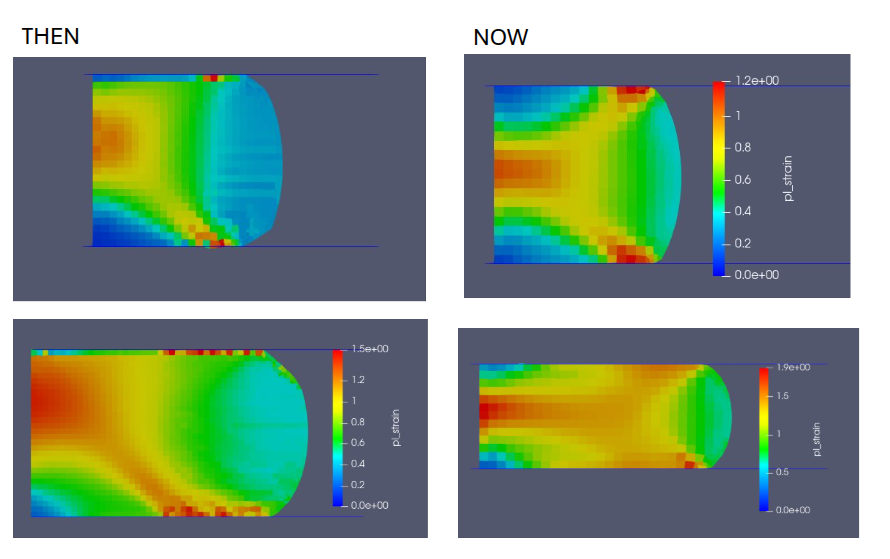

First I change some things to ReDynELA solver and now Im doing my first remeshing tryings with plastic strain metric. Some results below!

20241022 - WeldForm FEM/SPH GUI -Python Scripting!!!!

Wonderful news!!! Python scripting is working!!! Both wrapping and python console are working. Based on FreeCAD, I chose to use a Singleton class named App to contain a current model pointer. By doing this I avoided tedious treatment between SWIG global vars which I'been struggling

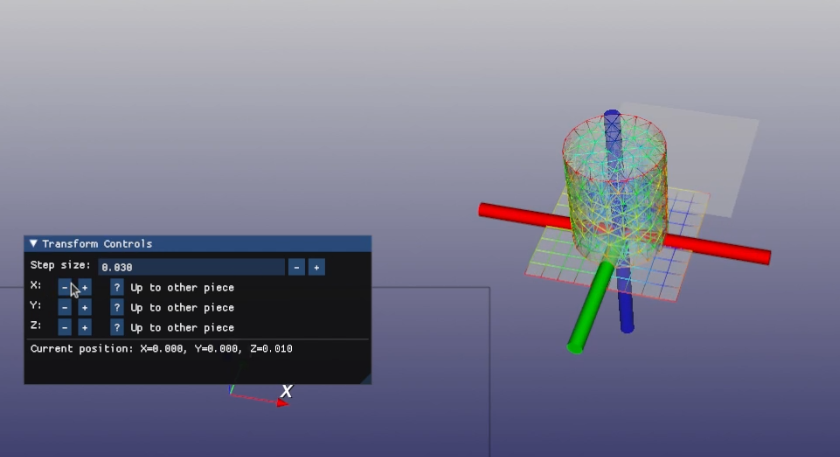

20241016 - WeldForm FEM/SPH GUI

Ok, has been so much time. WeldForm Graphical User Interface (GUI) has been under a lot of changes!!! - GMSH library finally was added in order to import geometry and to mesh it. - VTK library has been added, replacing the old rendering. - ImGui-vtk viewer to combine both GUI and mesh/geom rendering was adopted. - Both SWIG and Pybind11 have been adopted. - The idea is to incorporate python scripting to generate and see models. - How do you perform that avoiding wrapping the renderer and the GUI?

20240729 - WeldForm FEM/SPH GUI

WeldForm Graphical User Interface is becoming nice! Today I have been working on the GUI. It allows to open/create/edit/urun/postprocess SPH ND FEM models easily..
- Now model and results (scene) is drawn inside a separate Windows.
- Particle and entity selection is fixed.
- Added json library and begining to add model reading/writing.
- Added open cascade gmsh interface source fir reading geometry.
- Added Bc creation.
- Working on separate ViewportWindows class, almost finished.

20240724 - WeldForm FEM C++/CUDA (almost)- Working

WeldForm FEM C++ CPU 3D HEXA element solver is working great! Two things: - CUDA/C++ version is working with correct results but at some point process stops, once this is solved, GPU will be working.
- I think is a good moment to compare C++/Fortran CPU versions.

20240723 - WeldForm SPH - Bar Extrusion

Comparison between commercial software (Arbitrarian Eulerian Lagrangian FEM) vs WeldForm SPH. Bronze user defined material, axisymmetric problem!

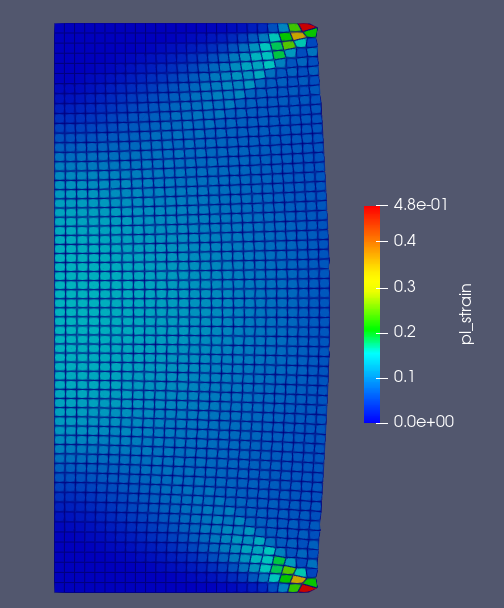

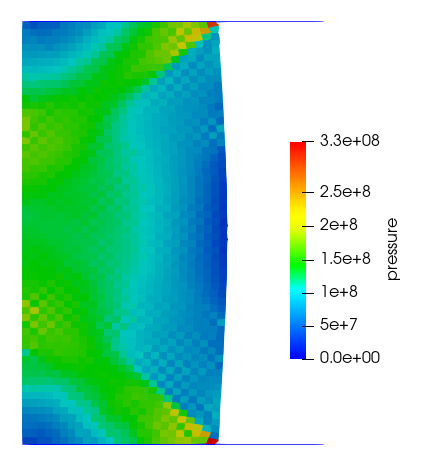

20240703 - WeldForm FEM - AxiSymmetric Solver Ready!!

WeldFormFEM, Lagrangian solver is working (F90 version) for AxiSymmetric problems!! This approach covers area-weighted, reduced integration elements.

20240619 - WeldForm SPH - Leapfrog vs Verlet

It seems that a constant step size performs a lot better than a variable one!
In green can be seen Fraser algorithm against Randles & Libersky.
Contact force is smoother and run is a lot more stable.
d .

20240618 - WeldForm SPH

Testing with a new extrusion process of an axsymmetric bronze bar!

20240614 - WeldForm GPU

WeldForm FEM GPU Version is calculating ok sigma!

20240613 - WeldForm SPH

I've been stdying WeldForm SPH results against commercial metal forming software.
Extrusion process of a bronze workpiece. GTN Material (see below) has been added
to WeldForm software,and the results after 145ms are shown.
It can be seen some particle separations, this is probably due to the following:
- There are very few particles on tube thickess (outlet)
- There is no kernel correction for momentum eqn at boundaries
- There is not ambient convection cooling at outlet
- There is a fixed time step
- h (SPH Characteristic length) is constant.

20240607 - Tinyest FEM Project - Python Educational Module

TinyestFEM is a tiny explicit educational FEM module which I intend to give
book format. Check it out! ( TinyestFEM ) and

20240607 - Top 10 OpenSource FEM Projects!

Today I began to make a video with the Top 10 FEM open source projects.
Even having known some of them, I found very interesting the thing that I have so many out there to test!!
Is also interesting the criteria. Usability, contributors, users, versions, history, scope?
Who is gonna win??
Among other things, Ive added plastic strain calculation F90 mechanical solver.
Next thing is to add Eulerian Lagrangian behavior to resove high strains problems!

20240607 - WeldForm SPH GPU! - Speed Up

Amazing news!! I got a NVIDIA RTX 3070 GPU just for fun! So..
Together with a GTX1660Ti which I have at work, I made some tests. I'm amazed about the speed up i get against an Intel i7 10700 with 16 threads.
How is gonna be at 300k and 500k particles?????

20240606 - WeldForm SPH - Thermal Axisymm is working

Finally thermal conduction SPH is working !!!!
There was also an error on applying manual mass scaling, on which the conductivity coefficient was erroneously affected. Also FEM

Image shows a FEM cube mesh.

20240603 - WeldForm SPH - Thermal Conduction

I included reading convection from input to WeldForm SPH solver. Now I must to modify thermal conduction equation. There are several works reeferring to this. Since Brookshaw developed SPH on axisymm coordinates, different works like ( García-Senz et Al ) and ( Castillo et al.) have developed the conduction equation. Original 3D current eqn is the following:

, where

20240530 - WeldForm GUI - Mesh creation

The wrk with the renderer is just begining. Now, not only SPH but also 2D and 3D FEM domains can be created from GUI. The idea is to add the great gmsh library in order to only create the geometry outside, and all the rest can be performed by the GUI: meshing, model creation (BCs, steps), running and post-processing.

Image shows a FEM cube mesh.

20240529 - First Examples of Extrusion process made with WeldForm

First models have been succesful!! I have to study several things, like some
strange behavior of the particles and the axial force.

Image shows a bronze extrusion process.

20240528 - WeldForm FEM & SPH advances

Today was an enhancements day. I have fixed / added several things on both FEM & SPH versions of WeldForm solvers.
In case of SPH solver, I have modified several thing in order to consider only contact conduction heat, and deprecating plastic heat and friction heat by the moment.

20240527 - Added state of contact conduction at the begin of the solution.
20240528 - Added feature of assign initial diff conditions for different Zone IDs
- Fixed contact BC with amplitude function (there was readng zero value)
- Added amplitude factor to be 1.0 by default (it was zero)
- Fixed contact conduction and friction heat for Axisymmetric
- Added optional plastic work heat
- Fixed contact conduction reading


In case of FEM solver, I'm currently adjusting the code fixing some errors before passing to GPU version which have a couple of bugs.
The intention is to compare the performnce on both CPU and GPU version, since the code is in fact the same, with modification through pre-processor instructions.

20240527 - WeldForm SPH Capacities

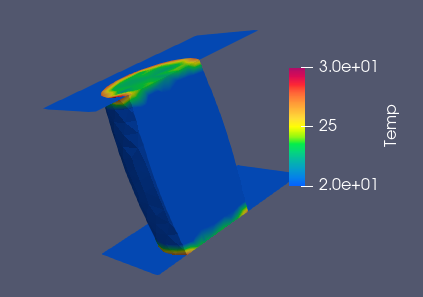

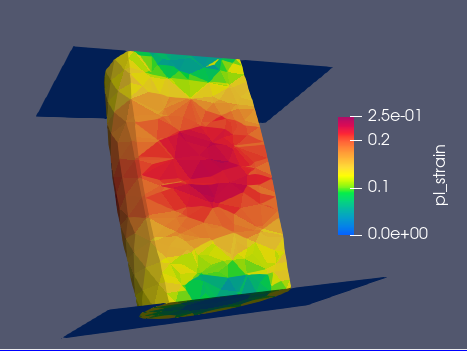

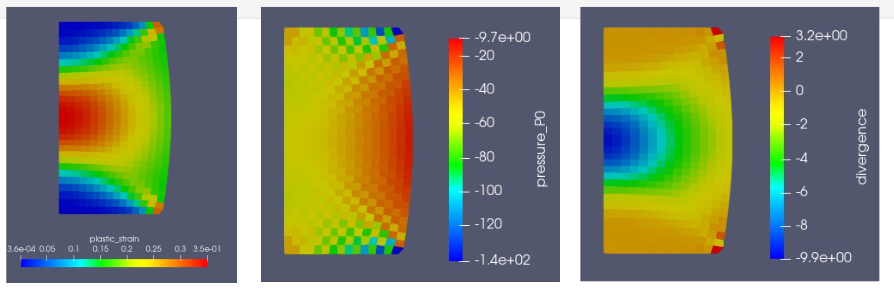

Thermal plastic heat generation is working OK! Example of Cylinder under compression.
There are still some issues regarding with contact thermal conduction which have to be fixed.
WeldForm accepts several contact surfaces, so here is an example of an extrusion problem.

20240524 - WeldForm GUI , again.

Again the built it renderer is being constructed. Fixed several index things (including some redundant reading from my library LSDynaReader) and now can be shown 2D and 3D elements, created or imported from K files. Lines are not redundant, since are checked with C++ sets. I'll do the same with faces in onder to plot only external faces and edges. Run a FEM/SPH model and show the results is coming...

20240523 - WeldForm GUI

WeldFormGUI now imports LS-Dyna files and displays them .. uhm, almost.
Love to code the native opengl renderer, pending since so much time ago. I'm reading about several known renderers, like Super Tux Kart and Bullet3 physics engine, and asking myself about how much verte buffer to use, is it convenient to use one for triangles and another one for wireframe? Considering rendering time and cost of binding.

20240522 - OpenRadioss - DSIF

Now the radioss script allowa to make different radius and shapes for DSIF.
Now will be available the ASDIF variant from inside to outside. Check on here: OpenRadioss Tutorial

20240521 - OpenRadioss - Thermal Incremental Forming

I'm facing the problem of not being able to intriduce thermal flux on OpenRadioss Shell problem. Trying to run a double sided incremental forming with assisted heat by joule effect, i'm discovering that even if the /IMPFLUX keyword are not giving me a warning, is only intended for 3D elements.
Because of this, I will run a only thermal 3D example (the overall 3D model would cost a lot of CPU), and then I will map the temperatures in order to put these on the thermo-mechanical model as inputs (at least), those which are on the tool zone. By the way, I have improved the openradioss generation script in order to include several path shapes.
Check on here: OpenRadioss Tutorial

20240520 - WeldForm FEM Working on C++

After several checks and errors found, finally, FEM explicit c++ CPU/GPU solver is working for 3d correctly. Is pending to check for Assemblying things. WeldForm FEM is an explicit reduced integration FEM solver in order to solve large deformations quickly. The idea is to study performance of Lagrangian solver CPU vs GPU. On the other side, to this code will be added an eulerian part (via operator split such as abaqus, and radioss) in order to study very large displacments and strains problems. The code architecture is structured such as could be built for CPU / GPU only changing preprocessing. Input could be given as LS-Dyna Format. 2D Is still pending (previous F90 version covers this.)

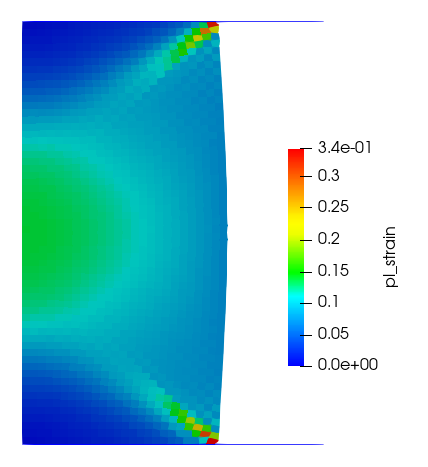

20240514 - AXISYMM Frictional Contact is working

Recent WeldForm Changes. Added GMT material!
20240513 - Added reading than one contact surfaces
- Changing normal calcs of planes
20240514 - Added GMT material to inpt
- Begining to add hot compression example with GMT mat
- Corrected yield stress calc with correct Initial Temp

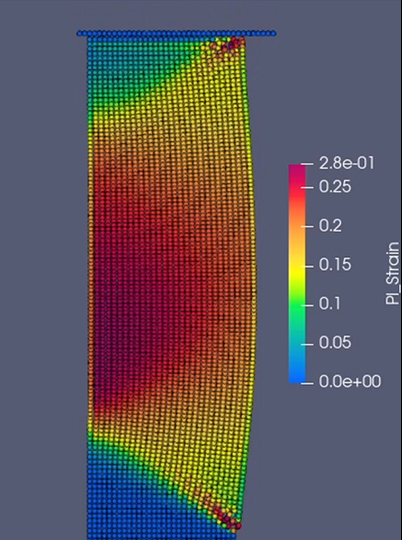

20240507 - AXISYMM SPH Working AND NairnMPM is running (almost)!!

Ok, GMT material model is introduced to WeldForm SPH code, this material is used to solve hot forging processes.
The idea is to introduce it also in NairnMPM code in order to see some results.
Some benchmarks are working with Johnson Cook material with MPM.
The idea is to compare them with SPH formulation.

20240507 - AXISYMM SPH Working AND NairnMPM is running (almost)!!

Three different projects are working:
- WeldForm SPH 2D AXISYMM IS WORKING!!! Finally, Wang formulation is working, also is fixed contact, but still pending thermal coupling
- NairnMPM is finally built with cmake (avoiding VS and working on linux)
- TinyestFEM project working on python (1 element FEM axisymmetric). This is intended to be part a tutorial series which will be detailing how FEM Eulerian - Lagrangian (ALE) works.

20240426 - AXISYMM SPH Almost Working..!

I fixed several issues with 2D Axisymm code. Pressure (EOS equation) and Speed Sound were calculated using fake density, (since following J Wang, D Chan and J Zhang, 2015, equations are based on density affected by radius ), one term of acceleration was wrongly calculated and still missing artifficial viscosity. Seems to be almost working!

20240426 - AXISYMM SPH!

Still Trying with 2D Axisymmetric SPH on WeldForm. I'm following "Stable axisymmetric SPH formulation with no axis singularity" (J Wang, D Chan and J Zhang, 2015). I've found several errors. Steps for plane strain to Axisymm are:
0-As in plane strain, I define r->x, z->y,but now is theta->z 1-Change density to axisymm density
2-Replace momentum vars per new eqns (and ar has a hoop stress term added)
3-Calculate Hoop Strain rate as vr/r
4-What about strain and rot rates?

20240425 - DSIF Double Sided Incremental Forming

Fixed XY PLANE SYMM on WeldForm!!!!! Not working yet axisymm slice.

20240424 - Kratos Multiphysics, HOWTO run PFEM Module

Finally, several steps concerning to usigng Kratos

1. Execute ./standard configure
Adding
export KRATOS_APPLICATIONS=
add_app ${KRATOS_APP_DIR}/LinearSolversApplication
add_app ${KRATOS_APP_DIR}/StructuralMechanicsApplication
add_app ${KRATOS_APP_DIR}/FluidDynamicsApplication
add_app ${KRATOS_APP_DIR}/PfemApplication
add_app ${KRATOS_APP_DIR}/PfemSolidMechanicsApplication
add_app ${KRATOS_APP_DIR}/PFEM2Application
add_app ${KRATOS_APP_DIR}/MPMApplication

And

# Configure
cmake -H"${KRATOS_SOURCE}" -B"${KRATOS_BUILD}/${KRATOS_BUILD_TYPE}" \
-DUSE_MPI=OFF \
-DUSE_TRIANGLE_NONFREE_TPL=ON \
-DUSE_EIGEN_MKL=OFF \
-DKRATOS_GENERATE_PYTHON_STUBS=ON

2. make install . This create bin folder inside kratos (which is being ommited in git). Inside bin, is Release folder in which is "KratosMultiphysics"

3. This is in order to read scripts
export PYTHONPATH=/home/weldform-pc/Numerico/Kratos/bin/Release

4. Replace inside MainPfem.py:
#import MainSolid
with
import KratosMultiphysics.SolidMechanicsApplication.solid_analysis as MainSolid

5 Inside TestFactory.py replace
import KratosMultiphysics.PfemApplication.MainPfem
with
import KratosMultiphysics.PfemApplication.MainPfem as MainPfem

6. Inside solid_analysis.py replace
#self.t0p = timer.clock()
self.t0p = timer.process_time()


7. Change in DelaunayMeshingApplication/remesh_domains_process.py No module named 'meshing_domain'. This file can be put inside test directory to be solved quickly. Most clean solution could be update PYTHONPATH

8. Important how to convert mesh to MDPA https://github.com/KratosMultiphysics/Kratos/wiki/Converting-Gmsh-mesh-format-to-MDPA

Still some errors

20240423 - Kratos, PFEM Module

20240422 - Advances in general, AXISYMMETRY

I'm trying to revival Symmetry on SPH. It's needed since I want to solve an extrusion problem. I like a paper written by Campos and Bonet in which they adopt axisymmetry with ghosts. I think it's kind of working on 1/4 of cylinder, but I'd like to implement less volume like Bonet.

Regarding to another fronts: Regarding to some other topics:
- Today I uploaded the first springback on OpenRadioss
- Also advanced on Axisymm FEM - Very stuck with Kratos PFEM

20240325 - WeldFormFEM GPU Advances

Last weekend commits: almost everything (except contact and hourglassing, oh and full integration not tested) is migrated to GPU / CPU in C++. Some errors in pressure and stress calcs but almost ready. I think could be convenient some Trello/jupyter nb or something like that to trace pendings. I noted the following about commit counting for each main branches:
Master: 361. Develop -> 463 ...
More than 100 commits ahead, WOW.

I'm pretty anxious about trying GPU performance of explicit FEM on GeFORCE 1660 Ti.

Some advances on DEVLOG:

20240302 - More Finite Volume Methods on Solid Mechanics

Ok, I did a very brief research, looking for similar works like the Haider's I mentioned in last entry. I'm wandering what I will find, if total or updated lagrangian, explicit or explicit in time, weakly compressible, among others. Will see. By now, it put them here in order to not lose them. I think I will begin a list with the works I will be finding.

20240220 - Hot Forging Methods

It's been a while, again. Few days ago I was doing a little research about common methods for modeling hot forging in metals. My interest is to emulate some results of Aluminium hot forging process, at high speed, which have been obtained with Simufact software. This process involves excessive large plastic strains and Simufact appeals to high remeshing to overcome this. This commercial software has a manual which describes that the method used for the simulation was the Finite Volume Method, but with a Lagrangian approach. By now, I will try to solve this process by several methods: Explicit FEM (OpenRadioss, eventually with ALE), Smoothed Particle Hydrodynamics (Radioss, and WeldFormGPU), but I became to wander how about solving this also with FVM.

Some years ago, I written a little FVM code for solving Transpor Eqns (particularly applied to Navier Stokes) with an OpenFOAM style ( FluxSol link ). Recently, after some time googling around, I came across the following great work: "An upwind cell centered Finite Volume Method for large strain explicit solid dynamics in OpenFOAM"(link here ). This PhD thesis consists of building some OpenFOAM mixed solver by combining its standard Transport solvers, linking with Solid equations, associating constituive and near incompressible relationships (don't know yet which ones) and then moving the mesh (is a Lagrangian approach, but also could be built a Eulerian one, perhaps being diffusive, but like in Abaqus with FEM). I discover also that among the authors is present J. Bonet, who wrote exceptionals works regarding with SPH formulations. All great news.

Once this FVM thing works with CPU, who knows if, with me knowing a little bit the method already from FluxSol, could this be rewritten on GPU to increase speed.... I will give it a try. Will see!

20231230 - DSIF Double Sided Incremental Forming

It's been so many time since last entry. So many things this month. I'm finishing a python script which generates from scratch the complete input file used by OpenRadioss to calculate the process of Double Sided Incremental Forming (DSIF). The script asks you the complete set of process parameters, plate and tool dimensions, and (not yet) mechanical and materials props. I think this is a very convenient script since there are not so many examples regarding coupled mech-thermal in OpenRadioss.

Script source code is here . And here is the mesher and input generator. Both files are nedded.

20231122 - HOURGLASS! and Reduced Integration

Making some recopilation about hourglass modes. These are the modes which arises fromreduced integration in order to improve efficiency. I'm trying to implement it on WeldFormFEM which works on full integration, but up until now solution is diverging. First paper about it which I readed was Benson. Later, I readed Goudreau works, which I wrote for WeldForm. Goudreau algorithm claims that this algorithm needs about 130 computer adds or multiples per hexa, whereas Flanagan-Belytschko algorithm needs about 630. The exact same table is in LS-DYNA manual here https://ftp.lstc.com/anonymous/outgoing/web/ls-dyna_manuals/DRAFT/DRAFT_Theory.pdf OpenRadioss has incorporated several hourglass controls: Kosloff and Frasier (simple), Flanagan-Belytschko, Physical Hourglass Formulation and Advanced Elasto-plastic. Links on hexa and here on shells On the other hand, ABAQUS uses kelvin viscoelastic control, here .

20231108 -

Ok, move to stress decomposing for calculating plain strain solid (still with full integration). Up until now 2D plain strain calculation was via elastic tensor, now is decomposed in order to work with plasticity. And what about plain stress?? Also begining to code C++ version, I still don't know if use Array Of Structures ofr Struct Of arrays on CPU version..

20231031 - SPH Damage

Ok. Surfing a Pseudo Spring model to add to WeldForm, I reached a work which uses LAMMPS software, which I didn't even know, from Sandia. The idea is to include Damage model and several (begining with Rankine as example and then JohnsonCook) failure criteria. Although Vaucorbeil and Hutchinson work is developed on a Total Lagrangian, and WeldForm is written in classic Eulerian form, the work shows the application of the pseudospring damage criteria to Johnson Cook, GTN and Cockroft-Latham damage models. Besides pseudo spring model, the other currently available damage and fracture implementation for SPH is the particle cracking method (last work and 2007 and 2010 following works of Rabczuk, T. Belytschko). According to Vaucorbeil: "Contrary to the pseudo-spring method, damage is calculated at the center of particles. When damage reaches a critical limit, the particle is split into two. In this case, damage is not localized as its value corresponds to an average over each particle’s corresponding volume. Therefore, the precise location of cracks is not defined and the way particles need to be split is non-trivial". For that reason, I kept with pseudo spring for the implementation on Weldform.

20231030 - Orthogonal Metal Cut / Drilling Simulation Papers

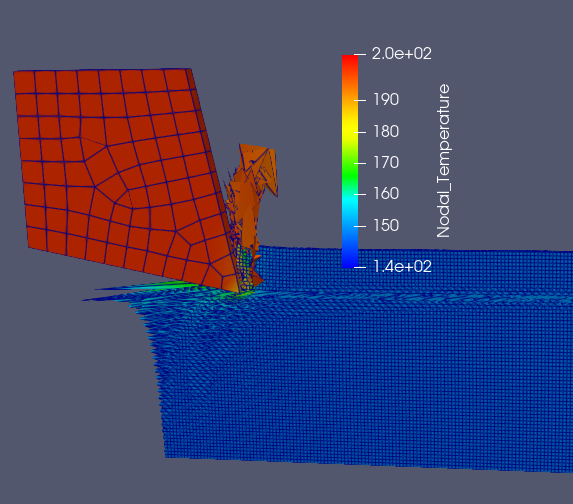

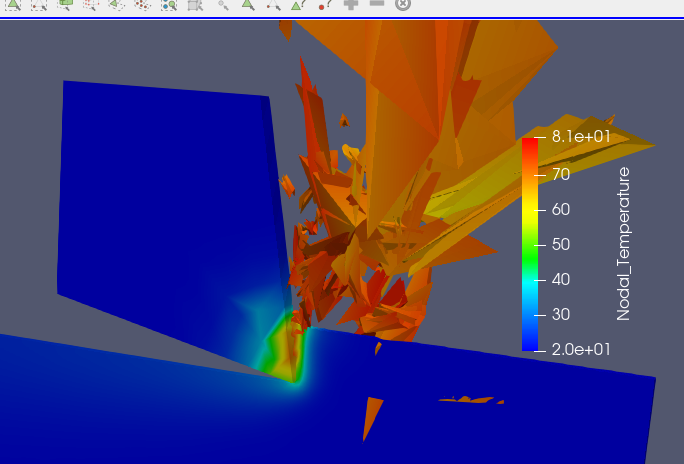

Trying to clean up a little bit some of the best papers about simulation of orthogonal metal cut processes..

20231030 - More tensile things

Regarding with material models, necking and others, I have been recollecting some papers about tensile test necking which are really good. I will add them to the links section.

20231025 WeldFormSPH - C++ CUDA Virtual Functions

After struggling a lot with virtual functions in CUDA, i just decided to kept a single class for materials in which I call a device function, with a material as an argument to call all hardening rules (calc yield stress and calc tangent modulus) from there. Another problem with inherited class is the memcpy, so, I'm tired oh inheriting on CUDA so Is all inside material class by now. Also began to write the file input reading code (contact and materials). Still remain NASTRAN reading for rigid bodies.

20231024 Tensile test - Necking and notch influence

Today I have been working with the influence of a notch in the response of a tensile test probe. This work includes the study of the necking in pre failure specimens. I have done both an explicit and implicit analysis. The results shown correspond to static implicit analysis, in 3D.

20230829 C++ vs. Fortran Round 1

Ok , I have been done some testing comparing C++ and Fotran90 Smoothed particle Hydrodynamics codes. I get less than the half of calculation time Fotran 90. I discovered later that the comparison has been not fear, due to one of the 12 threads was writing outputs each 1/10th of the total time, whereas F90 code only writes an output at end time. The problem solved is: Cantilever Beam subjected to bending at one end. SPH Method. 3744 particles. Explicit Reduced Verlet (constant time step) integrator. C++ is with an AOS scheme (vector of class Particle Pointers) and F90 is with a SOA scheme (Structure of arrays).
